PTP Aluminum Foil Thickness: A Complete Guide to Pharmaceutical Blister Packaging

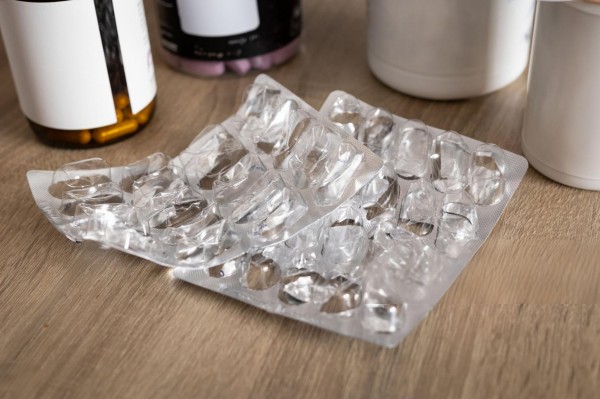

In ensuring drug safety, stability, and efficacy, packaging plays an indispensable role. Blister packaging is widely used globally due to its convenience, clear dosage presentation, and excellent product protection. As the key material in blister packaging that contacts the drug directly and forms the barrier seal, the performance of PTP (Press-Through Packaging) Aluminum Foil​ is critical. Among all its technical parameters, thickness​ is the decisive factor affecting mechanical properties, barrier effectiveness, production efficiency, and overall cost. This article provides an in-depth and systematic exploration of all aspects of PTP aluminum foil thickness, serving as a comprehensive selection and application guide for pharmaceutical companies and packaging engineers.

1. PTP Aluminum Foil: Structure, Function, and Central Role

PTP aluminum foil is not simply a metal foil; it is a high-performance multilayer composite material​ engineered to meet the stringent requirements of pharmaceutical packaging. Its “Press-Through” functionality demands a material that is easy for consumers to puncture while maintaining absolute integrity during production, transportation, and storage.

1.1 The Precise Multilayer Structure

Each layer serves a specific function, collectively building a robust protective wall:

• Aluminum Foil Substrate (Core Layer): Typically made from aluminum alloys like 8011 or 8021, it provides the fundamental mechanical strength​ and inherent barrier properties, acting as the physical barrier against water vapor, oxygen, and light. Its thickness is the core focus of this article.
• Heat-Seal Coating: Applied to the inner side of the foil (facing the blister forming film), it creates a strong seal with PVC, PVDC, or PP blister films under heat and pressure, which is crucial for package integrity.
• Printing Layer and Protective Lacquer: The outer side is printed with branding and information, then coated with a transparent protective lacquer. This ensures graphics are abrasion-resistant and clear while protecting the ink from environmental interaction.

1.2 Core Functions

This composite structure gives PTP aluminum foil three core functions:

• Superior Barrier Properties: Effectively prevents the permeation of moisture and oxygen, the primary condition for maintaining a drug’s chemical stability.
• Reliable Physical Protection: Resists puncture and tearing, protecting the drug from physical damage.
• Excellent Applicability: Suitable for high-speed automatic filling and sealing production lines, and meets design needs like child-resistance and senior-friendliness.

2. Standard Thickness Analysis: The Performance Spectrum from 20μm to 30μm

The industry standard thickness range is between 20 and 30 micrometers (μm). Different thicknesses correspond to different performance grades and application scenarios, forming a clear technical spectrum.

Table 1: Comprehensive Performance Comparison of Standard PTP Aluminum Foil Thickness

In-depth Look at the “Industry Standard” 25μm:

The prevalence of 25μm is no coincidence. It achieves a critical technical balance: its strength is sufficient to withstand high-speed stamping at over 400 blisters/minute and the friction/compression of subsequent cartoning processes; its barrier properties (typically with Water Vapor Transmission Rate below 0.1 g/m²·24h) can meet the stability testing requirements (e.g., long-term 25°C/60%RH) stipulated by most regulatory bodies like ICH. For pharmaceutical companies, choosing 25μm represents the lowest-risk, most broadly compatible decision.

3. Beyond Thickness: The Synergistic Impact of Other Key Parameters

Thickness is key, but not the only factor. It must be considered in synergy with other parameters.

3.1 Thickness Tolerance: Uniformity Determines Consistency

Tolerance is a key indicator of foil quality. ±5% is the common standard for high-end pharmaceutical packaging, while ±8% may only be acceptable for less demanding applications.

Table 3: Impact of Thickness Tolerance on Production and Quality

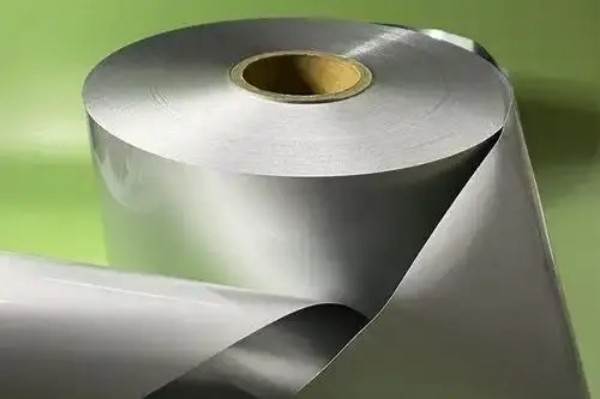

High-quality PTP foil employs precision rolling and online monitoring systems to ensure consistent thickness across the roll’s length and width.

3.2 Aluminum Alloy and Temper: The Foundation of Strength

• 8011-H18: The most mainstream choice. “H18” signifies a full-hard temper, offering high tensile and yield strength. This gives the blister rigidity, produces a clear “click” sound when pressed, and resists accidental rupture.
• 8021-O: Relatively softer, with excellent formability, used for complex blister shapes requiring high ductility. Its strength is generally lower than 8011-H18.

3.3 Coating Performance: The Soul of the Seal

The chemical composition, coating weight, and uniformity of the heat-seal coating directly affect seal strength, temperature resistance, and the sealing temperature window. Even with a perfect foil substrate, a poor coating will lead to seal failure.

4. Scientific Selection: A Multi-Dimensional Decision Model

Selecting PTP foil thickness is a systematic engineering decision. The following model should be applied:

4.1 Risk Assessment Based on Drug Characteristics

• Physicochemical Sensitivity: The drug’s sensitivity to moisture and oxygen is the primary determinant. Data from stability tests (e.g., accelerated 40°C/75%RH) can be used to determine the required WVTR for the packaging, thus defining the minimum foil thickness.
• Drug Form: Tablets with sharp, beveled edges demand higher foil puncture resistance, necessitating thicker or stronger foils.
• Shelf Life & Market: Requirements differ for a 2-year vs. a 5-year shelf life, and for products sold in Scandinavia versus Southeast Asia.

4.2 Packaging System Compatibility

• Blister Forming Film Type:
  • PVC: Universal material, typically paired with 20-25μm foil.
  • PVC/PVDC, PVC/PE/PVDC: The PVDC layer significantly enhances the barrier. Typically paired with 23-25μm foil for optimal overall cost-performance.
  • PP, Aclar® (PCTFE): Used for high-barrier needs, often paired with 25-30μm foil for the highest protection level.

Table 4: Selection Guideline Matrix Based on Packaging System & Machine Speed

• Packaging Equipment Parameters:
  • Machine Speed: Higher speeds demand higher foil tensile strength, elongation, and thickness uniformity. For lines ≥400 strokes/min, 25μm or thicker is strongly recommended.
  • Die Condition: Die sharpness and flatness affect stamping. New dies can accommodate thinner foil, while worn dies may require thicker foil for compensation.

4.3 Supply Chain and Cost Considerations

A Total Cost of Ownership (TCO) analysis should be conducted, ensuring all technical and regulatory requirements are met. Thicker foil has higher material costs but may offer better overall economics by reducing line downtime and product rejection rates.

5. Frequently Asked Questions (Q&A)

Q1: We want to reduce packaging costs. Can we switch from our current 25μm foil to 20μm?

A:​ This requires very careful evaluation, not just a cost-based decision. You must consider:

• Drug Characteristics: Is your drug highly sensitive to moisture/oxygen? If yes, thinner foil may not provide sufficient barrier, affecting shelf life.
• Production Line: What is the speed of your blister machine? 20μm foil has lower mechanical strength and is more prone to breakage or poor sealing on high-speed lines, potentially increasing downtime and waste, thus raising total cost.
• Compliance: Any material change requires stability testing and packaging validation to ensure it meets regulatory filing standards. Pilot testing on a small batch and joint assessment with your foil and machine suppliers is recommended.

Q2: How do I initially select the right PTP foil thickness for a new drug?

A:​ It is advised to follow this decision path:

1. Define Requirements: First, determine the drug’s stability needs (accelerated/long-term testing conditions), target shelf life, and the target market’s climate (especially humidity).
2. Benchmark Competitors: Review the common packaging structure and foil thickness used for similar drugs on the market, especially the originator’s product. This is a valuable industry benchmark.
3. System Matching: Based on the chosen blister film (e.g., PVC or PVC/PVDC) and machine speed, use the “Selection Guideline Matrix” above for a preliminary choice. For most oral solid dosage forms, starting tests with 25μm​ is a lower-risk option.
4. Test and Validate: Final confirmation must come from package integrity testing, stability studies, and process validation​ on the production line.

Q3: For preventing damage during shipping, is the foil’s “hardness” (temper, e.g., H18) or “thickness” more important?

A:​ Both are crucial, but they play different roles:

• Thickness: Primarily provides overall mechanical strength and puncture resistance. Thicker foil better withstands external compression and stress from sharp tablet edges.
• Hardness/Temper (e.g., H18): Primarily provides rigidity and stiffness. H18 temper foil keeps the blister rigid, resisting deformation under local pressure, thus preventing material fatigue failure from repeated bending.

  Best practice is to combine both: For fragile drugs or those requiring long-distance shipping, using 25μm or thicker 8011-H18 foil​ is recommended to achieve excellent strength and rigidity simultaneously.

Q4: How can I quickly assess the quality of PTP aluminum foil?

A:​ Beyond reviewing supplier qualifications and test reports, some quick checks include:

• Visual Inspection: The foil roll’s ends should be neat, free of burrs or stains. The foil surface should be smooth, clean, without obvious bright/dark spots or transverse streaks.
• Hand Feel and Sound: Gently crumple a small piece. Good foil should feel somewhat stiff, produce a crisp sound when crumpled, and show uniform creases when released, not feeling “limp”.
• Print Quality: Check for clear, well-registered printing without smudging or missing print. The protective lacquer should be even.
• Preliminary Peel Test: You can roughly heat-seal it to a piece of PVC film and try peeling it to feel if the seal strength is uniform (this is a qualitative check; standard instrument testing is required for validation).

6. Global Trends and Future Outlook

1. High-Performance Down-Gauging: Development of 20-23μm ultra-thin, high-performance foils​ with performance equal to or better than traditional 25μm foil, achieved through improved alloy formulation, coating technology, and processing. This aims for source reduction, cost savings, and sustainability.
2. Integration of High Barriers and Intelligence: Demand for 25-30μm foil​ for high-end drugs continues to grow. Integration with smart elements like QR codes or RFID for traceability will place new demands on print compatibility and structural integrity.
3. Regulation-Driven Harmonization: Increasingly strict global pharmaceutical regulations are driving the harmonization and stricter requirements for PTP foil quality standards (e.g., extractables, leachables, seal strength testing) and thickness tolerances.

Conclusion

Selecting PTP aluminum foil thickness is far from a simple number choice; it is a precise technical decision​ integrating materials science, pharmaceutical technology, mechanical engineering, and regulatory knowledge. 25μm, as the time-tested industry standard, remains the most robust starting point and benchmark for most situations.

For pharmaceutical companies, the optimal path is:

1. Start with Risk Assessment: Define protection needs based on drug characteristics.
2. Conduct System Matching: Test and validate the foil together with the forming film and equipment as a complete system.
3. Build a Partnership: Collaborate deeply with PTP foil suppliers possessing strong technical capabilities, strict quality systems, and rich industry experience for co-development and stability testing.
4. Continuously Verify and Optimize: Monitor production data and optimize based on actual performance.

In the world of pharmaceutical packaging, details determine success or failure. A deep understanding and scientific application of the key detail that is PTP aluminum foil thickness​ is the solid cornerstone for building the last line of defense for drug safety.
