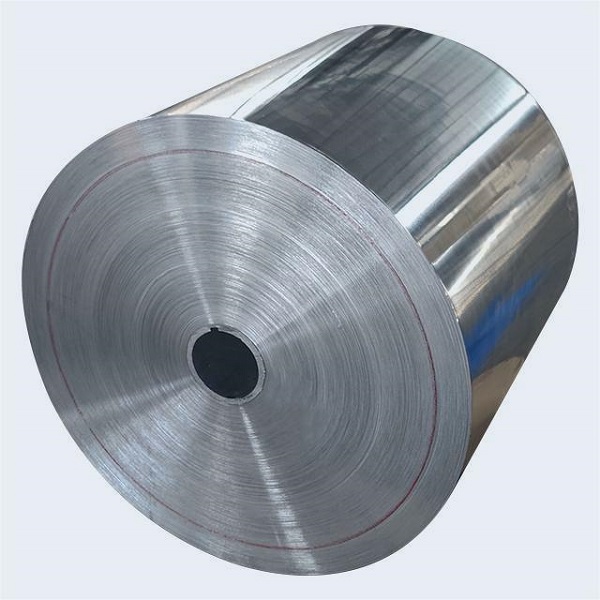

1235 Aluminum Foil
As a core 1000-series pure aluminum foil, 1235 aluminum foil is preferred in pharmaceuticals, packaging and electronics for its high purity, excellent mechanical properties and wide adaptability. Especially in pharmaceuticals, its compliance, safety and outstanding barrier protection make it the benchmark for PTP blister packaging, meeting strict industry requirements while balancing cost-effectiveness and stability for industrial use.
I. Core Product Overview
1235 aluminum foil is a 1000-series pure aluminum foil (Al ≥99.35%), made from 4N high-purity aluminum ingots and compliant with GB/T 3190-2025 and ASTM B479-2025. Its key advantages: high purity, low impurities, excellent flexibility, formability, corrosion and barrier performance, plus precise control of thickness and plate shape. It meets pharmaceutical compliance and adapts to industrial, food and electronic fields, serving as a multi-functional, safe and practical aluminum foil.
II. Core Technical Parameters
|
Parameter Category
|
Specific Indicators
|
Standard Value/Controllable Range
|
Test Standard
|
|
Basic Specifications
|
Thickness
|
0.005-0.2mm (0.006-0.05mm commonly used for pharmaceutical grade)
|
ASTM B479-2025, GB/T 3190-2025
|
|
Width
|
100-1840mm (customizable on demand)
|
||
|
Length
|
2000-70000m (customizable on demand to adapt to different production lines)
|
||
|
Temper
|
O态 (Soft State), H18 (Hard State), adjustable on demand
|
||
|
Chemical Composition (Mass Fraction %)
|
Al (Aluminum)
|
≥99.35
|
ISO 6892-2025
|
|
Fe+Si (Iron+Silicon)
|
≤0.60 (Fe/Si ratio 1.8-2.2)
|
||
|
Cu (Copper)
|
≤0.02
|
||
|
Mn (Manganese)
|
≤0.02
|
||
|
Other Impurities
|
Single element ≤0.01, total ≤0.03
|
||
|
Total Impurities
|
≤0.65
|
||
|
Mechanical Properties
|
Tensile Strength
|
O态: 40-100MPa; H18: ≥135MPa (Ultra-thin foil ≥120MPa)
|
ISO 6892-2025, ASTM E228-2025
|
|
Elongation
|
O态: 0.01-0.024mm ≥1%; 0.025-0.04mm ≥2%; 0.041-0.07mm ≥4%
|
||
|
Resistivity
|
29.4nΩ·m (can be reduced to 18nΩ·m at liquid helium temperature)
|
||
|
Pharmaceutical-grade Special Indicators
|
Compliance
|
Complies with the Guiding Principle 9625 of the 2025 Edition of the Chinese Pharmacopoeia, USP, and EP standards
|
Pharmacopoeia Standards, SGS Testing
|
|
Heat Sealing Performance
|
The surface can be coated with heat-sealing paint, suitable for various blister packaging machines, with qualified heat-sealing strength
|
III. Core Product Advantages (Focus on Pharmaceuticals, Cover Multiple Fields)
1. Pharmaceutical-grade Compliance and Safety to Safeguard Drug Quality
Produced under full-process quality control and risk management, it complies with the 2025 Chinese Pharmacopoeia Guiding Principle 9625 and GMP. Free of harmful impurities, odors and migration when in contact with drugs, it safeguards drug stability, efficacy and patient safety, suitable for solid dosage forms like tablets and capsules.
2. Excellent Barrier Protection to Extend Drug Shelf Life
With excellent barrier properties, it blocks moisture, oxygen, UV rays and pollutants, preventing drug deterioration and extending shelf life. Its multi-layer structure enhances protection and anti-tampering—any tampering leaves obvious traces, ensuring drug integrity during transportation and storage.
3. Excellent Processability to Adapt to Pharmaceutical Production Lines
Highly flexible and easy to form/punch, it fits PTP blister packaging machines perfectly. Formed blister cavities are regular for easy single-dose access. Its flat surface allows clear, non-fading printing of drug information, meeting pharmaceutical labeling standards.
4. High Purity and Quality, Suitable for Multi-scenario Applications
With Al ≥99.35%, it uses high-purity ingots, featuring uniform surface, no scratches/pinholes, and precise tolerance control (thickness ±5%, width ±1mm). Beyond pharmaceuticals, it is widely used in food packaging, electromagnetic shielding, capacitors and more, reducing procurement costs.
5. Green, Environmentally Friendly and Recyclable, in Line with Low-Carbon Concepts
Environmentally friendly and non-toxic, it is 100% recyclable with low recycling costs. It aligns with global low-carbon trends, helps enterprises meet environmental compliance and enhances brand image.
IV. Main Application Fields (Focus on Pharmaceuticals, Cover Full Scenarios)
★ Pharmaceutical Field (Core Application)
Core application: PTP blister packaging for solid drugs (tablets, capsules, granules), including inner lining and sealing foil. It is also used for aluminum-plastic composite packaging and bottle cap sealing, widely recognized in the pharmaceutical industry for compliance and protection.
★ Food Packaging Field
Suitable for flexible packaging of candies, dairy products, powdered food, tea and bread. It acts as fresh-keeping and sealing foil, maintaining freshness, preventing odors and improving packaging grade.
★ Electronic and Industrial Fields
Used for electronic equipment shielding, cable wrapping, capacitor electrode foil and lithium battery current collectors (H18 temper). Its good conductivity and formability ensure stable operation of electronic and industrial products.
★ Other Fields
Other applications: automotive radiator fins, solar collector absorber plates, lamp reflectors and architectural decoration, leveraging its thermal conductivity, reflectivity and corrosion resistance.
V. Quality Assurance System
We prioritize product quality with a full-process control system from raw material procurement to delivery, ensuring stable quality for every batch:
-
Raw Material Control: Select 4N high-purity ingots, strictly test composition and purity to exclude unqualified materials.
-
Production Control: Adopt precision rolling and full automation, monitor thickness, plate shape and surface quality, and control production environment.
-
Testing Control: Pass SGS/FDA third-party testing before delivery, with complete test reports for key indicators.
-
Certification Guarantee: Hold ISO 9001/14001/OHSAS 18001; pharmaceutical-grade products comply with pharmacopoeia and GMP, with available certificates.
VI. Customized Services and Cooperation Guarantees
Customized Services
Customize 1235 aluminum foil (thickness, width, length, temper: O/H18) and provide surface coating, printing and slitting services. Flexible MOQ (5 tons minimum) to fit your needs.
Cooperation Guarantees
-
Supply Guarantee: Stable capacity, timely delivery, multiple transportation options and customs services.
-
Price Guarantee: Factory direct supply, no middlemen, bulk purchase discounts and reasonable quotes.
-
After-sales Guarantee: 24/7 professional team, technical consultation, free samples and unconditional return for quality issues.
-
Payment Guarantee: Support T/T, L/C, D/P and other safe payment methods.
VII. Frequently Asked Questions (FAQ)
Q1: What is the difference between 1235 aluminum foil and 8011 aluminum foil in the pharmaceutical field?
A1: Both are widely used in pharmaceutical packaging. 1235 (pure Al ≥99.35%) has better flexibility/formability for easy punching; 8011 (alloy) has higher barrier/tensile strength and lower cost. Free samples are available for testing.
Q2: Does 1235 aluminum foil comply with international pharmaceutical standards?
A2: Yes. It complies with the 2025 Chinese Pharmacopoeia, USP, EP and JP standards. Third-party test reports and certificates are available for global pharmaceutical enterprises.
Q3: Can samples be provided for testing?
A3: Yes. Free samples (various specs/tempers) are provided for performance and adaptability testing, with short delivery cycles and sample test reports.
