Aluminum Foil Surface Defects and Inspection Solutions
Aluminum foil surface defects inspection is a critical quality control process that directly determines the performance, safety, and market acceptance of aluminum foil used in packaging, pharmaceuticals, and industrial applications. Even microscopic surface imperfections can lead to barrier failure, sealing defects, or downstream processing issues, making systematic inspection essential for modern foil manufacturers.
1. Why Surface Defects Matter in Aluminum Foil Production
Aluminum foil is often used in applications where barrier integrity, hygiene, and visual appearance are strictly regulated. Surface defects not only affect appearance but may also compromise functional properties such as:
- Oxygen and moisture barrier performance
- Heat sealing consistency
- Print adhesion and coating uniformity
- Mechanical strength during forming or folding
In pharmaceutical and food packaging, surface defects can directly result in product recalls or compliance failures.
2. Common Types of Aluminum Foil Surface Defects
Surface defects originate from rolling, annealing, handling, or contamination during processing. The most frequently observed defects are summarized below.
Table 1: Common Aluminum Foil Surface Defects and Their Causes
| Defect Type | Visual Characteristics | Primary Causes | Potential Impact |
|---|---|---|---|
| Pinholes | Microscopic holes visible under light | Inclusion particles, rolling pressure imbalance | Loss of barrier properties |
| Roll Marks | Parallel lines along rolling direction | Damaged rolls, vibration | Poor appearance, print defects |
| Scratches | Linear surface damage | Improper handling or slitting | Reduced coating adhesion |
| Oil Stains | Irregular dark patches | Excess rolling oil residue | Sealing failure, odor issues |

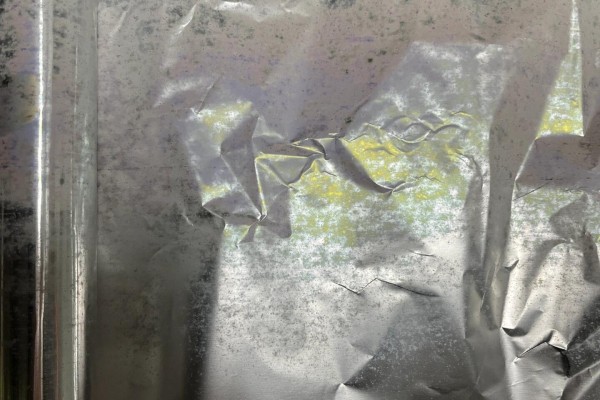

| Oxide Spots | Dull or white patches | Poor annealing atmosphere | Reduced corrosion resistance |
3. Inspection Solutions for Aluminum Foil Surface Defects
To ensure consistent quality, inspection solutions must combine online detection with offline verification.
3.1 Online Inspection Technologies
Modern foil mills rely on real-time inspection systems integrated directly into rolling or rewinding lines. These systems typically include:
- High-resolution line-scan cameras
- LED or laser-based illumination
- AI-assisted defect classification algorithms
Online systems allow immediate process adjustments, significantly reducing scrap rates.
3.2 Offline and Laboratory Inspection Methods
Offline inspection remains essential for root-cause analysis and customer audits. Common methods include:
- Optical microscopy for pinhole density analysis
- Surface roughness measurement (Ra, Rz)
- Residual oil testing
- Adhesion and coating integrity tests
4. Inspection Method Comparison
Table 2: Comparison of Aluminum Foil Surface Inspection Methods
| Inspection Method | Detection Accuracy | Real-Time Capability | Cost Level | Typical Application |
|---|---|---|---|---|
| Visual Manual Inspection | Low–Medium | No | Low | Final sampling |
| Optical Camera System | High | Yes | Medium–High | Rolling & rewinding lines |
| Laser Surface Scanning | Very High | Yes | High | High-end pharmaceutical foil |
| Laboratory Microscopy | Very High | No | Medium | Root-cause analysis |
5. Industry Case: Eco Alum Co., Ltd
Eco Alum Co., Ltd is a specialized aluminum foil manufacturer supplying food-grade and pharmaceutical-grade foil to international markets. Several years ago, the company faced recurring customer complaints related to micro pinholes detected during blister packaging.
Solution Implemented by Eco Alum Co., Ltd
- Installed an advanced online optical inspection system on rewinding lines
- Optimized rolling oil filtration to reduce contamination particles
- Established pinhole density thresholds for different foil thicknesses
Results Achieved
- Pinhole-related complaints reduced by over 70% within one year
- Improved acceptance rate from pharmaceutical customers
- Enhanced reputation in export markets requiring strict quality documentation
This case demonstrates how systematic inspection upgrades can directly translate into measurable commercial benefits.
6. Best Practices for Reducing Surface Defects
To minimize defect formation, manufacturers should focus on:
- Regular roll surface maintenance and polishing
- Clean rolling oil circulation systems
- Stable rolling speed and tension control
- Controlled annealing atmosphere
- Standardized inspection criteria aligned with customer requirements
Inspection should be viewed not as a cost, but as a preventive investment.
7. Frequently Asked Questions (FAQ)
Q1: What is the most critical surface defect in aluminum foil?
Pinhole defects are generally considered the most critical because they directly affect barrier performance.
Q2: Can surface defects be completely eliminated?
While complete elimination is unrealistic, proper process control and inspection can reduce defects to acceptable industry levels.
Q3: Is online inspection mandatory for pharmaceutical foil?
Most pharmaceutical customers strongly prefer or require online inspection data as part of quality documentation.
Q4: How often should foil inspection systems be calibrated?
Calibration is typically recommended every 3–6 months, depending on production volume and customer standards.
8. Conclusion
Effective aluminum foil surface defects inspection combines advanced technology, disciplined process control, and practical industry experience. As market requirements become more stringent, manufacturers that invest in reliable inspection solutions—like Eco Alum Co., Ltd—will maintain competitive advantages in quality, compliance, and customer trust.
